PRODUCT INFORMATION

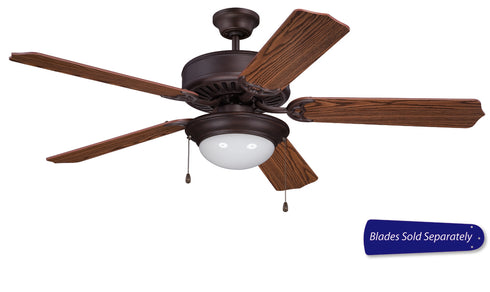

Pro Builder 209 52" Ceiling Fan in Aged Bronze Brushed with Opal White Glass, Blades Sold Separately
- Model Number : C209ABZ
- Width : 0''
- Height : 17.08''
- Diameter : 0''
- Weight : 13.23 lb
- Finish Available : Aged Bronze Brushed
- Glass Available : Opal White
- Style : Traditional
- Category : Fans
- Subcategory : Fan Motor Without Blades
- Family : Pro 209
- Voltage : 12060
- Number Of Bulbs : 2
- Additional Info : Country of Origin: China
- Air Flow CFM : 4517.3
- Air Flow Efficiency : 71.82
- Amperage : 0.52
- Blade Pitch : 12
- Blade Type : Type5
- Blades Included : Sold Separately
- Bulb Dimmable : Yes
- Bulb Shape : A19
- Bulb Type : LED
- Canopy : Depth 5.17 Width 5.17 Height 2.09
- Down Rod Included : 4
- Kelvin : 3000
- Light Kit Included : Included (Optional)
- Material : Glass Steel Silicon Steel
- Motor Fan Speed : 3
- Motor RPM : 163
- Motor Size : 153x13
- Motor Type : AC
- Sold In Pack Of : 1
- Special Features : 4" Downrod (Included)
- Special Features : Blades Sold Separately
- Special Features : Dual Mount (Flat or Angled Ceiling)
- Special Features : Frost White Bowl Light Kit included (29W LED Bulbs Included)
- Special Features : Limited Lifetime Warranty
- Special Features : Standard, 3Speed Reversible Motor
- Wire Included : 23
- AirflowEfficiency High : 71.42
- AMPS High Max : 0.52
- Blade Count : 5
- Blade Features : Blades Sold Separately
- Blade Sweep Options : 42 / 52
- Blade To Ceiling Height : 10.71
- Bulb Finish : White
- CFM High : 4390.89
- CFM High Max : 4449.68
- CFM Low Max : 1565.95
- Compatible Control Types : UCI20022 Remote & Wall Control
- Control Method : Pull Chain
- Control Status : Optional
- Control Types Included : Pull Chain
- Downrod Diameter : 0.5
- Downrod Quantity : 1
- ElectricityUsed High : 62.38
- ElectricityUsed Low : 10.31
- Energy Guide CFM : 3063
- Energy Guide CFM Watts : 81
- Energy Guide Est Yearly Energy : 11
- Energy Guide Watts : 38
- Energy Star : No
- Finish Group : Bronze
- Fixture Total Bulb Count : 2
- Fixture Total Bulbs Included : 2
- Glass/Shade Finish : White Opal
- Glass/Shade Height : 3.148
- Glass/Shade Included : Yes
- Glass/Shade Material : Glass
- Glass/Shade Neck Diameter : 6.957
- Glass/Shade Shape : Bowl
- Glass/Shade Width : 7.879
- Housing Height : 4.13
- Housing Size : 11.65
- Leadwire Length : 76.000
- Light Kit Adaptable : Yes
- Light Kit Features : Bowl Light Kit Included (NonDimmable)
- Light Kit Location : Downlight
- Light Kit Options : Bowl Light Kit Included
- Motor Diameter : 153
- Motor Height : 13
- Motor Material : Silicon Steel
- MotorRPM 1 : 178
- MotorRPM 2 : 127
- MotorRPM 3 : 67
- MotorRPM Low : 67
- Mounting Method : Dual Mount (Flat or Angled Ceiling)
- Number Of Downrods : 1
- Primary Bulb Initial Lumens : 750
- Primary Bulb Lumens : 750
- Primary Bulb Lumens Per Watt : 83.33
- Reverse Location : Switch Housing
- Reverse Method : Slide Switch
- Safety Rating : ULus
- Slope Mount : Yes
- Up Down Capability : No
- Watts : 62.9
