PRODUCT INFORMATION

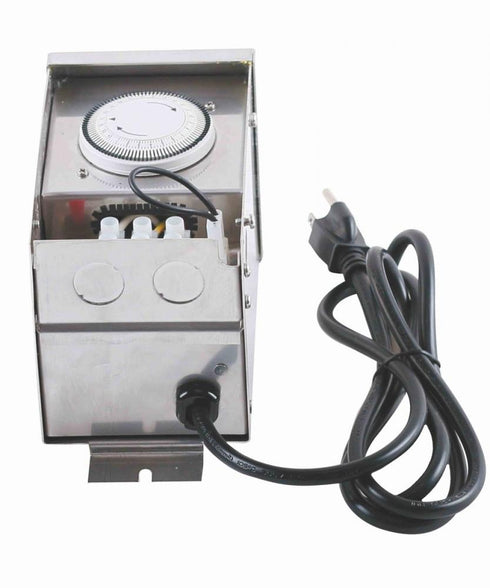

Low voltage landscape lighting transformer with stainless steel case and Single slipped door. 75 Watt Magnetic transformer that converts 120 volt ac to 12 volt AC to be used for landscape lighting. Voltage output taps are 12V and 15V. Rated for outdoor use, comes with a photocell. Knockouts are located on the side. There is a plug in.
- Model Number : TF75WST
- Width : 6.34''
- Height : 4.33''
- Diameter : 6.34''
- Style : Traditional
- Category : Outdoor Lighting
- Subcategory : Outdoor Transformer
- Depth : 6.34
- Auto Off Timer : 24 H
- Billable Weight : 4
- Canopy : Yes
- Compatible Transformer : Electronic
- Conduits Knockout Location : Side
- Controls Up to No. of Watts Load : 120 V/15 A
- Cord Finish : Black
- Cord Length : 57.87
- Current Type : AC
- Housing Material : Metal
- Includes Timer or Photocell : Yes
- Input Voltage : 120 V/60Hz
- Magnetic or Electronic : Magnetic
- Max Wattage : 75 W
- Outdoor : Yes
- Outlets for a Timer or Photocell : Yes
- Output Voltage : 0-12-15 V
- Package Item Quantity : 1
- Photocell Depth : 4.33
- Photocell Finish : Gray
- Photocell Power Method : 1800 W Tungsten 1100 VA Ballast
- Photocell Width : 1.27
- Plug In : Yes
- Power Method-Plug In : Yes
- Safety Rating : ETL Approved, UL Approved
- Timer Height : 1.30
- Timer Input Voltage : AC 120 V
- Timer Material : PC
- Timer Warranty : 5 Years
- Timer Width : 2.44
- Total Carton Weight : 7
- Transformer Number of Taps : 3
- Transformer Taps Voltage : 12 V, 15 V
- Volume : 0.008832627
