PRODUCT INFORMATION

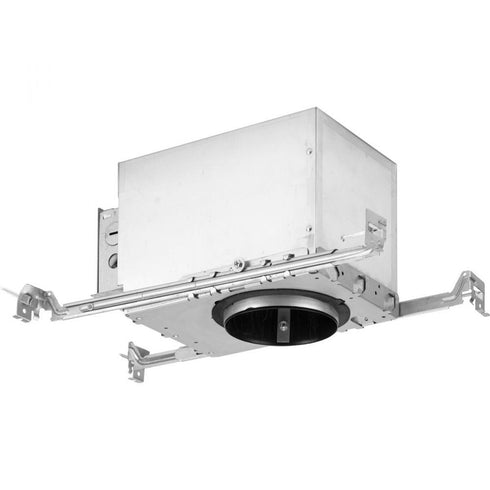

This 4 in. small-aperture Air-Tight Non-IC New Construction Housing provides accent and task lighting for new construction applications and is ideal for those who have easy access above the ceiling. Use with a variety of trims and finishes to create different lighting effects or match any decor. Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage. The lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. It features a universal J-box with snap-out sides and provided with push in connectors to make wiring quick and easy. Bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. Pre-installed framing nails on the bar hangers make installation quick and efficient. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The integrated temperature sensor prevents lamp overheating, allowing this fixture to be used with a range of lamp shapes and wattages. It is UL and CUL listed for damp locations and Non-IC installation. The housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor.
- Model Number : P804N-N-MD-AT
- Width : 8.51''
- Height : 5.52''
- Finish Available : Unfinished
- Style : Traditional
- Category : Recessed
- Family : 4 Inch Recessed Housing
- Voltage : 120
- Bulb Type : PAR20
- Keyword(s) : 4 inch housing recessed functional light lights lighting fixture fixtures new construction airtight residential commercial medium base bulb bulbs lamp lamps led incandescent dimmable 1 one
- Material : Steel
- Special Features : The housing and frame are constructed from die-formed corrosion resistant galvanized steel;Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compart
- Bulb Base : E26
- Bulb Included : No
- Can be Mounted Up or Down : No
- Certified Listed Location : Damp Location Listed
- Construction Material Main part : Housing
- Construction Material Secondary : Steel
- Construction Material Secondary part : Construction
- Convertible Fixture Includes Both Mounts : No
- Dark Sky : No
- Energy Efficient : Yes
- Energy Star : No
- Finish Type : Unfinished
- Grounded Convenience Outlet Included : No
- JA8 : No
- Lamp Type Basic : Incandescent
- Lamp Wattage : 50
- Mount Location : Ceiling Joists, or in Suspended Ceilings
- Post Top Fits Standard : No
- Quick Install Canopy : No
- Quick Link Connector : No
- Room Type : Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility
- Safety Rating : cULus
- Weight of Fixture Exceeds NEC Limits : No
