PRODUCT INFORMATION

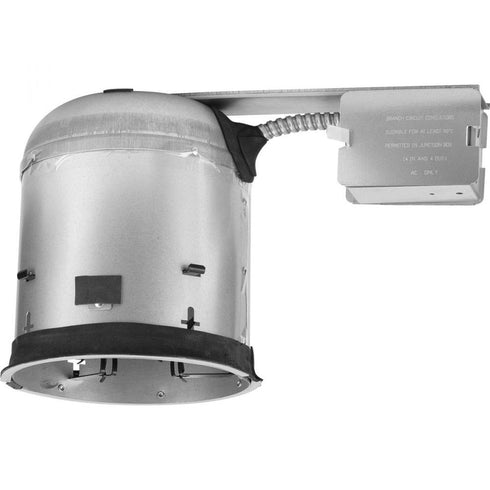

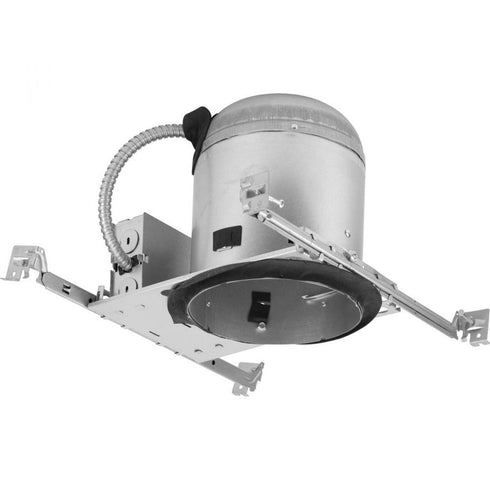

This 6 in. Recessed Housing with Quick Link Connector has several great installation features plus an Air-Tight rating. It is ideal for IC and non-IC new construction applications. Its gasketed Air-Tight housing restricts airflow from conditioned spaces into unconditioned attic space, preventing unnecessary HVAC costs and improving the overall home energy efficiency. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. The lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in. It features a universal J-box with snap-out sides. Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts - simply strip supply wires and push in. The housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber, engineered lumber, and laminated beams. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. It is UL and CUL listed for damp locations and is thermally protected against improper use of lamps.
- Model Number : P806N-N-MD-ICAT
- Width : 9.44''
- Height : 7.38''
- Finish Available : Unfinished
- Style : Traditional
- Category : Recessed
- Family : 6 Inch Recessed Housing
- Voltage : 120
- Bulb Type : BR-40
- Keyword(s) : 6 inch housing recessed functional light lights lighting fixture fixtures new construction airtight residential commercial medium base bulb bulbs lamp lamps led incandescent dimmable 1 one
- Material : Steel
- Special Features : The housing and frame are constructed from die-formed corrosion resistant galvanized steel;Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compart
- Bulb Base : E26
- Bulb Included : No
- Can be Mounted Up or Down : No
- Certified Listed Location : Damp Location Listed
- Construction Material Main part : Housing
- Construction Material Secondary : Steel
- Construction Material Secondary part : Construction
- Convertible Fixture Includes Both Mounts : No
- Dark Sky : No
- Energy Efficient : Yes
- Energy Star : No
- Finish Type : Unfinished
- Grounded Convenience Outlet Included : No
- JA8 : No
- Lamp Type Basic : Incandescent
- Lamp Wattage : 90
- Mount Location : Ceiling Joists, or in Suspended Ceilings
- Post Top Fits Standard : No
- Quick Install Canopy : No
- Quick Link Connector : No
- Room Type : Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility
- Safety Rating : cULus
- Weight of Fixture Exceeds NEC Limits : No
Click Here to View Warranty
Click Here to View Specification Sheet
