PRODUCT INFORMATION

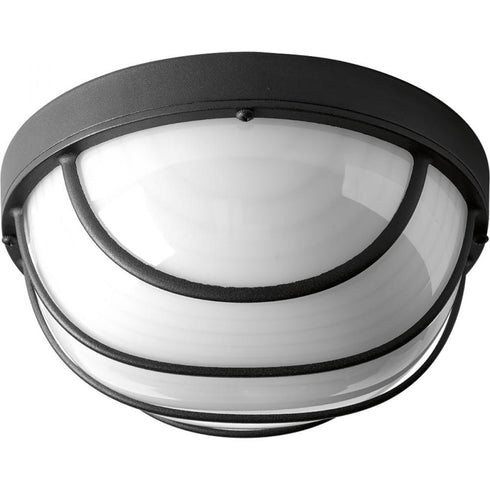

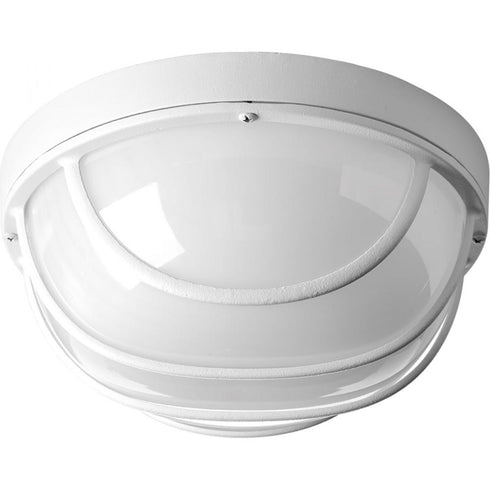

One-Light 9-1/2 Inch LED Wall or Ceiling Bulkhead. General purpose LED luminaire comprised of a die-cast aluminum frame and polycarbonate diffuser with cage design. Fixtures are impact resistant and can be mounted on wall or ceiling. Replaceable LED module. White finish.
- Model Number : P3650-3030K9
- Width : 9.13''
- Height : 4.69''
- Diameter : 9.5''
- Finishes Available : White, Textured Black
- Glass Available : White
- Style : Traditional|Transitional
- Category : Outdoor
- Family : Bulkheads LED
- Glass : White
- Voltage : 120
- Number of Bulbs : 1
- Backplate Height : 1.00
- Backplate Width : 9.13
- Bulb Type : Module
- Depth : 4.69
- Height To Center of Outlet : 4.75
- Kelvin : 3000
- Keyword(s) : lantern;exterior light;outdoor light;led
- Lumens / Light Output : 922
- Material : Aluminum
- Special Features : Robust and energy efficient.;Offers various mounting options.;Can be widely adapted for indoor and outdoor applications.;Meets California Title 24 high efficacy requirements for outdoor use only.;1,211 lumens 71.2 lumens/watt per module (source);3000K colo
- Wire Included : 6 in
- Americans with Disabilities Act : No
- Backplate Depth : 9.13
- Bulb Base : Module
- Bulb CRI : 90 CRI
- Bulb Included : Yes
- Can be Mounted Up or Down : No
- Canopy Shape : Round
- Certified Listed Location : Wet Location Listed
- Construction Material Main part : Construction
- Dark Sky : No
- Design Series : No
- Dimming Compatability : Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600
- Dimming Protocol : ELV/Reverse Phase
- Dimming Range : 10%
- Energy Efficient : Yes
- Energy Star : Yes
- Finish Type : Powder Coat Paint
- Frequency Rating : 60 Hz
- Glass Height : 3.625
- Glass Length : 9.1875
- Glass Shape : Diffuser
- Glass Width : 9.1875
- Grounded Convenience Outlet Included : No
- JA8 : No
- Lamp Type Actual : LED
- Lamp Type Basic : Solid State
- Lamp Wattage : 17
- Lens Shade Material : Polycarbonate
- Lumens per Watt : 54.60
- Mount Location : Wall or Ceiling
- MTO : No
- Operating Temperature Celcius Max : 30 °C
- Room Type : Outdoor
- Safety Rating : cCSAus
- Starting Temperature Minimum : -30 °C
- Sub Brand : Progress LED
- Width Diameter : 9.5 in dia.
