PRODUCT INFORMATION

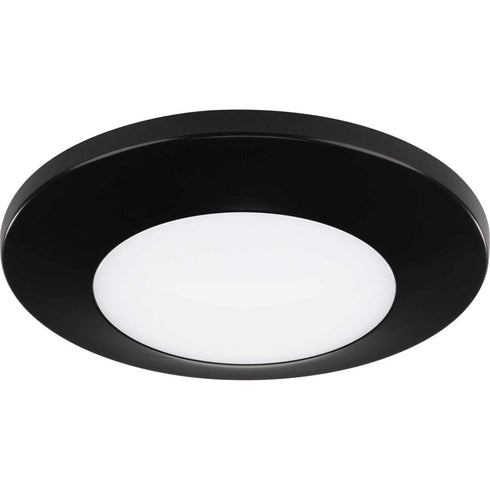

Revel in the brilliant combination of easy installation and a sleek, modern lighting aesthetic offered by our Emblem Surface Mount LED Collection. A symbol of clean, classic designs with smooth, eye-appealing curvature, Emblem provides you with familiar lighting shapes and functional features engineered for both outstanding performance and unparalleled longevity. An excellent choice for general ambient lighting, each polished design features a smooth, slightly tapered trim ring surrounding a single, integrated LED light source. Each trim ring is available in two different sizes and finishes to help meet your unique design needs. Enjoy the unmatched level of glare control offered by the fixture’s diffused polycarbonate lens that also hides any unwanted LED pixilation. Each light fixture is home to an integrated AC LED light engine that seamlessly installs to a variety of ceiling pan junction boxes to give you added flexibility when it comes to creating your design vision. The surface mount will also satiate the cravings of any environmentally-aware and cost-savvy buyer with the fixture's long-lasting, 50,000-hour LED life span and 80% energy savings.
- Model Number : P810014-020-30
- Width : 7.25''
- Height : 1.38''
- Diameter : 0''
- Finishes Available : Antique Bronze, Satin White
- Glass Available : Diffused
- Style : Transitional
- Category : Close-to-Ceiling
- Family : Emblem
- Glass : Diffused
- Voltage : 120
- Number of Bulbs : 1
- Bulb Type : Integrated LED
- Kelvin : 3000
- Lumens / Light Output : 1080
- Material : ADC12
- Special Features : Integrated AC LED technology 3000K, 90 CRI, 1000 lumens (delivered);Die-cast aluminum construction with a powder coat paint finish;Diffused polycarbonate lens controls direct glare from the LEDs;Simple snap in installation for J-Box with 1/2 Inch minimum d
- Wire Included : 6 in
- Americans with Disabilities Act : No
- Bulb Base : Integrated
- Bulb CRI : 90 CRI
- Bulb Included : Yes
- Can be Mounted Up or Down : No
- Certified Listed Location : Wet Location Listed
- Construction Material Main part : Construction
- Dark Sky : No
- Design Series : No
- Dimming Compatability : IDevices_IDEV0009;Leviton_Trimatron 6681;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta Wireless;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH-WH;Lutron_Maestro MACL-153
- Dimming Protocol : Triac/Forward Phase;ELV/Reverse Phase
- Energy Efficient : Yes
- Energy Star : Yes
- Finish Type : Painted
- Frequency Rating : 60 Hz
- Glass Shape : Lens
- Grounded Convenience Outlet Included : No
- JA8 : 2019
- Lamp Type Actual : LED
- Lamp Type Basic : Solid State
- Lamp Wattage : 15.5
- Lens Shade Material : Polycarbonate
- Lumens per Watt : 69.70
- Mount Location : Wall or Ceiling
- MTO : No
- Operating Temperature Celcius Max : 30 °C
- Safety Rating : cCSAus
- Starting Temperature Minimum : -30 °C
- Sub Brand : Progress LED
- Weight of Fixture Exceeds NEC Limits : No
Click Here to View Spec Sheet
Click Here to View Warranty
Click Here to View Install Sheet
