PRODUCT INFORMATION

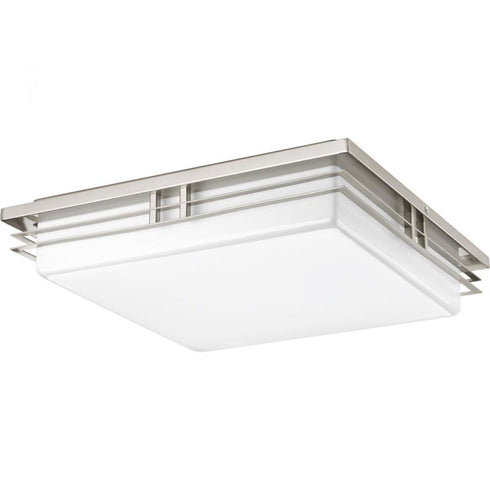

Helm is a uniquely styled series with design flexibility. This contemporary square fixture has an acrylic diffuser with architectural detail. Can mount to ceiling or wall. Three-light 18 Inch LED fixture in Brushed Nickel. 3000K, 90+CRI 1,211 Lumens 71.2 lumens/watt per module (source).
- Model Number : P3449-0930K9
- Width : 18''
- Height : 3.75''
- Diameter : 18''
- Weight : 8.84 lb
- Finish Available : Brushed Nickel
- Glass Available : White
- Style : Contemporary|Craftsman/Mission|Transitional
- Category : Close-to-Ceiling
- Family : Helm LED
- Glass : White
- Voltage : 120
- Number of Bulbs : 3
- Backplate Height : 1.13
- Backplate Width : 17.56
- Bulb Type : Module
- Depth : 3.75
- Height To Center of Outlet : 9.00
- Kelvin : 3000
- Keyword(s) : flushmount;ceiling fixture;ceiling light;led light;energy efficient
- Lumens / Light Output : 1995
- Material : Steel
- Special Features : Helm is a uniquely styled series with design flexibility.;This contemporary square fixture has an acrylic diffuser with architectural detail.;Can mount to ceiling or wall.;Dimmable to 10% with many ELV dimmers;1,211 lumens 71.2 lumens/watt per module (sour
- Wire Included : 6 in
- Americans with Disabilities Act : Yes
- Backplate Depth : 17.56
- Bulb Base : Module
- Bulb CRI : 90 CRI
- Bulb Included : Yes
- Can be Mounted Up or Down : No
- Canopy Shape : Square
- Certified Listed Location : Damp Location Listed
- Construction Material Main part : Construction
- Dark Sky : No
- Design Series : No
- Dimming Compatability : Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600
- Dimming Protocol : ELV/Reverse Phase
- Dimming Range : 10%
- Energy Efficient : Yes
- Energy Star : Yes
- Finish Type : Plated
- Frequency Rating : 60 Hz
- Glass Height : 3.625
- Glass Shape : Diffuser
- Glass Width : 15.8125
- Grounded Convenience Outlet Included : No
- JA8 : No
- Lamp Type Actual : LED
- Lamp Type Basic : Solid State
- Lamp Wattage : 17
- Lens Shade Material : Acrylic
- Lumens per Watt : 39.40
- Mount Location : Wall or Ceiling
- MTO : No
- Operating Temperature Celcius Max : 30 °C
- Room Type : Hall & Foyer;Bedroom
- Safety Rating : cCSAus
- Starting Temperature Minimum : -30 °C
- Sub Brand : Progress LED
- Weight of Fixture Exceeds NEC Limits : No
- Width Diameter : 18 in sq.
